Features
-
High power, Small body size.
-
Excellent pulse characteristics.
-
Flameproof painting, resistant to heat & solvents.
-
Very low inductance (less than 1 μH).
Product Overview

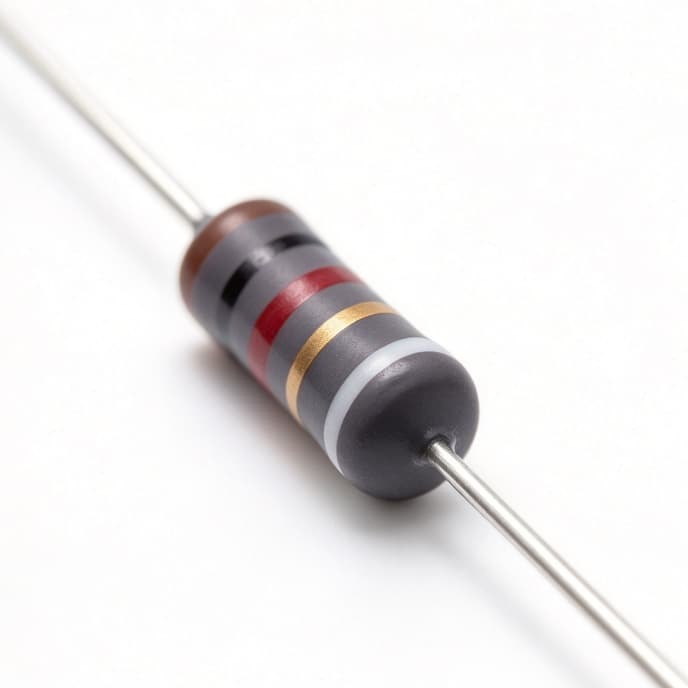

The NRSS 1/2W 5% anti-pulse non-inductive resistor is a compact resistor designed for electronic circuit applications where pulse characteristics and low inductance are important selection considerations. It features flameproof coating with resistance to heat and solvents, making it a candidate component for power supply circuits, electronic equipment, and pulse-related circuit designs.
Technical Specifications
| Parameter |
Specification |
| Series |
NRSS |
| Product Type |
Anti-Pulse Non-Inductive Resistor, Small Type |
| Rated Power |
1/2W |
| Resistance Tolerance |
±5% (J) |
| Resistance Range |
0.22Ω–200kΩ |
Applications
1. Power Supply Circuits
The NRSS non-inductive resistor can be considered for positions in power supply circuits where pulse characteristics and low inductance are relevant to component selection. Engineers should evaluate circuit voltage, current, transient waveform, and rated power before choosing a resistance value.
2. Electronic Equipment and PCB Designs
Its small-type construction makes the NRSS series a candidate for compact electronic assemblies and PCB component selection. Layout evaluation should include pad design, thermal conditions, and clearance from adjacent components.
3. Pulse-Related Electronic Circuits
For circuits exposed to pulse loads, the NRSS series can be evaluated as an anti-pulse resistor option. Suitability depends on pulse amplitude, duration, repetition rate, and energy.
4. Industrial Electronic Equipment
The series may be evaluated for industrial control and general electronic equipment according to operating temperature, resistance value, and electrical load requirements.
